Twin Lobe Air Blower
1.5 HP to 10 HP — 90 to 700 CFM
Rugged cast-iron twin lobe blowers in six frame sizes for continuous duty aeration. Imported bearings, high-grade impellers, TEFC motor, safety relief valve and air filter with silencer supplied as standard.
Manufacturing / supply unit
Twin Air Blower Manufacturing Unit — Salua, Baruipara
Specifications
| Motor power | 1.5 / 2 / 3 / 5 / 7.5 / 10 HP |
|---|---|
| Air flow | 90-120 • 120-160 • 160-240 • 240-350 • 350-500 • 500-700 CFM |
| Pressure | 0.4 – 0.6 Bar (G) |
| Speed | 1440 RPM / 2880 RPM |
| Drive type | Direct / V-belt drive |
| Cooling | Air cooled |
| Construction | Rugged cast iron |
| Voltage | 230V / 415V, 50 Hz, 3 phase |
| Application | Continuous duty |
Applications
Water treatment plantsAeration tanksCement plantsPneumatic conveyingTextile industryFood & beverage industryPharmaceutical industry
Quality assurance
Every lot is tested in our NABL-accredited laboratory and shipped with a certificate of analysis.

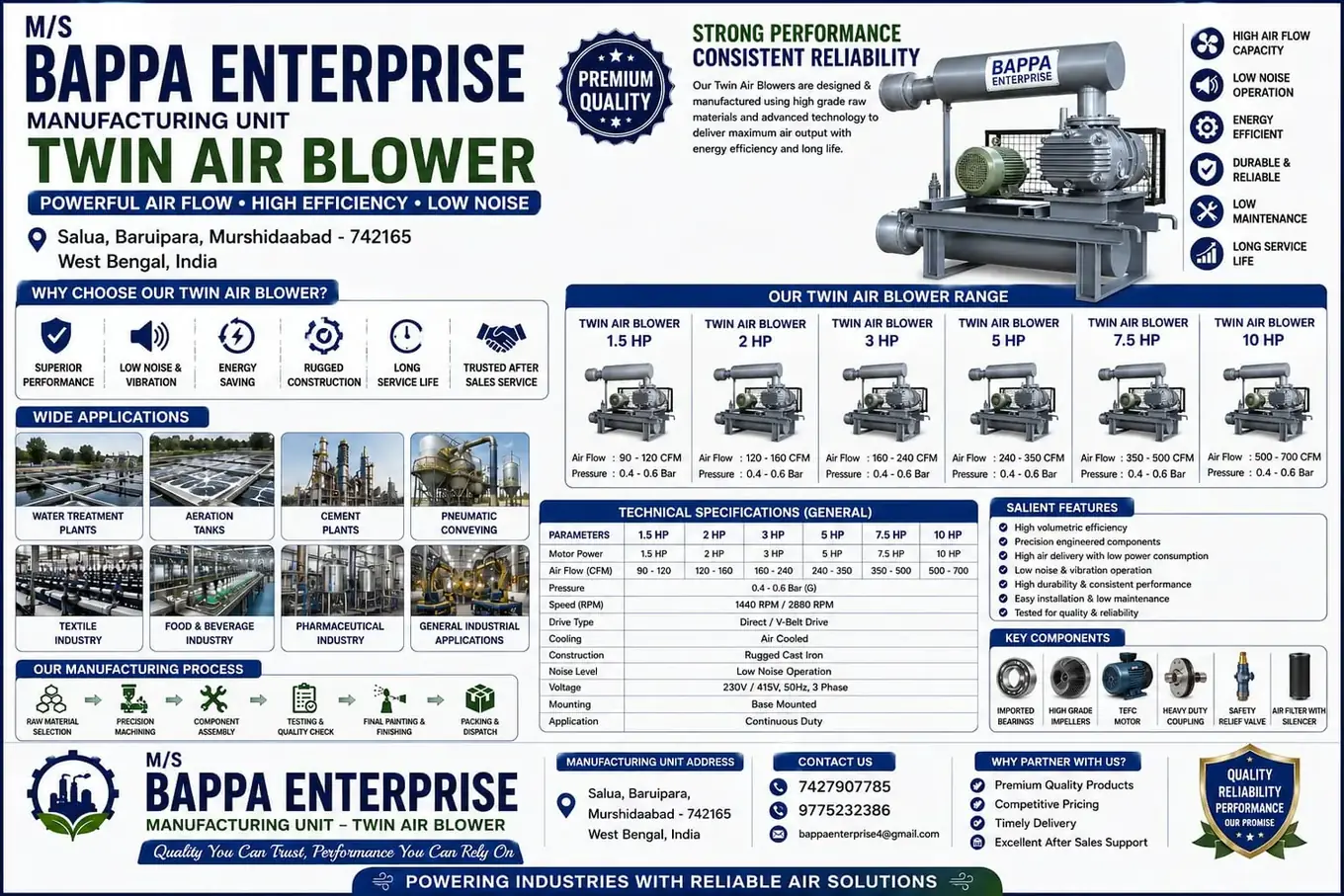

Datasheet
The full technical sheet
Tap to enlarge
Tell us what you need and the quantity.
Send the grade and destination — you will have a price and availability back the same working day.
